Electric Hydraulic Hole Puncher
We offer you a superior MPH-20 hydraulic puncher press. It is a portable electric-hydraulic punch that is capable of cutting 1/4" thick material. The MPH-20 operates on 110V, 60HZ power. It equips with five dies of φ6.5, φ9, φ13, φ17, φ20.5mm. The electric hydraulic hole punch can be used in punching on steel plate, angle steel plate, iron plate, aluminum plate, and U-steel, especially in some industrial and mechanical place.
-
Precise Positioning -
Ultra-High Power -
Standard Punch Dies -
Manual Oil Return Switch
Stable Penetration
The hydraulic puncher can drill a hole accurately; you need not worry about the wrong hole position. The puncher will keep stable penetration.

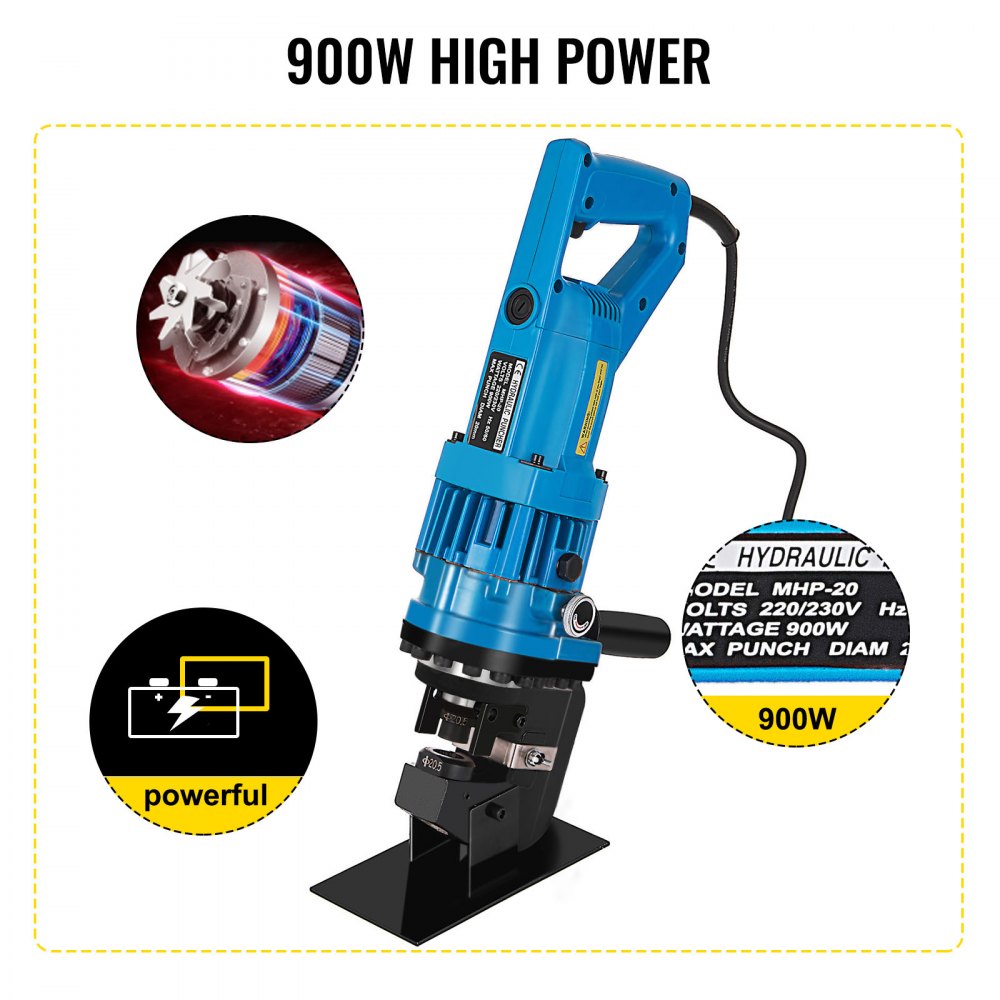

900W High Power
The hydraulic metal hole puncher comes with a 900W strong power, which provides high power for punching, and you can efficiently complete the work.

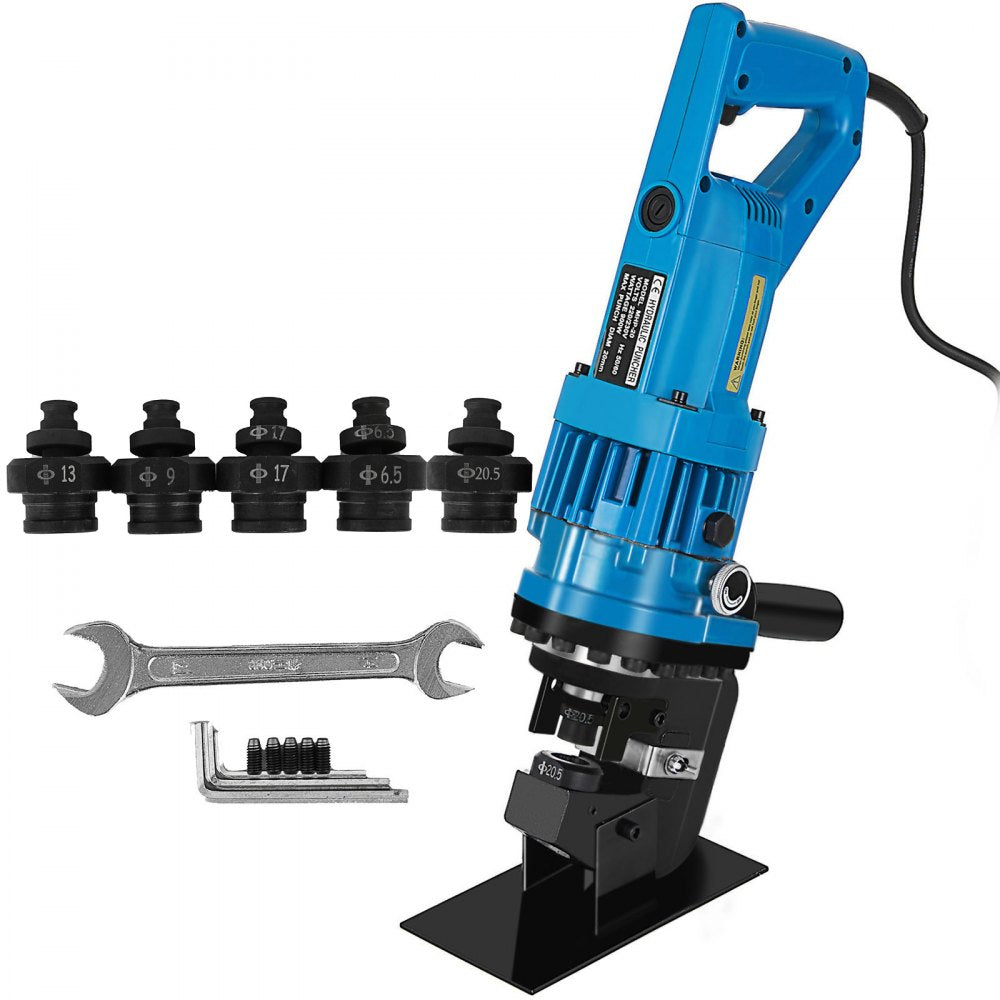

Five Applicable Dies
There are five different dies, φ6.5, φ9, φ13, φ17, φ20.5mm. They are portable and easy to use, improving punching efficiency.

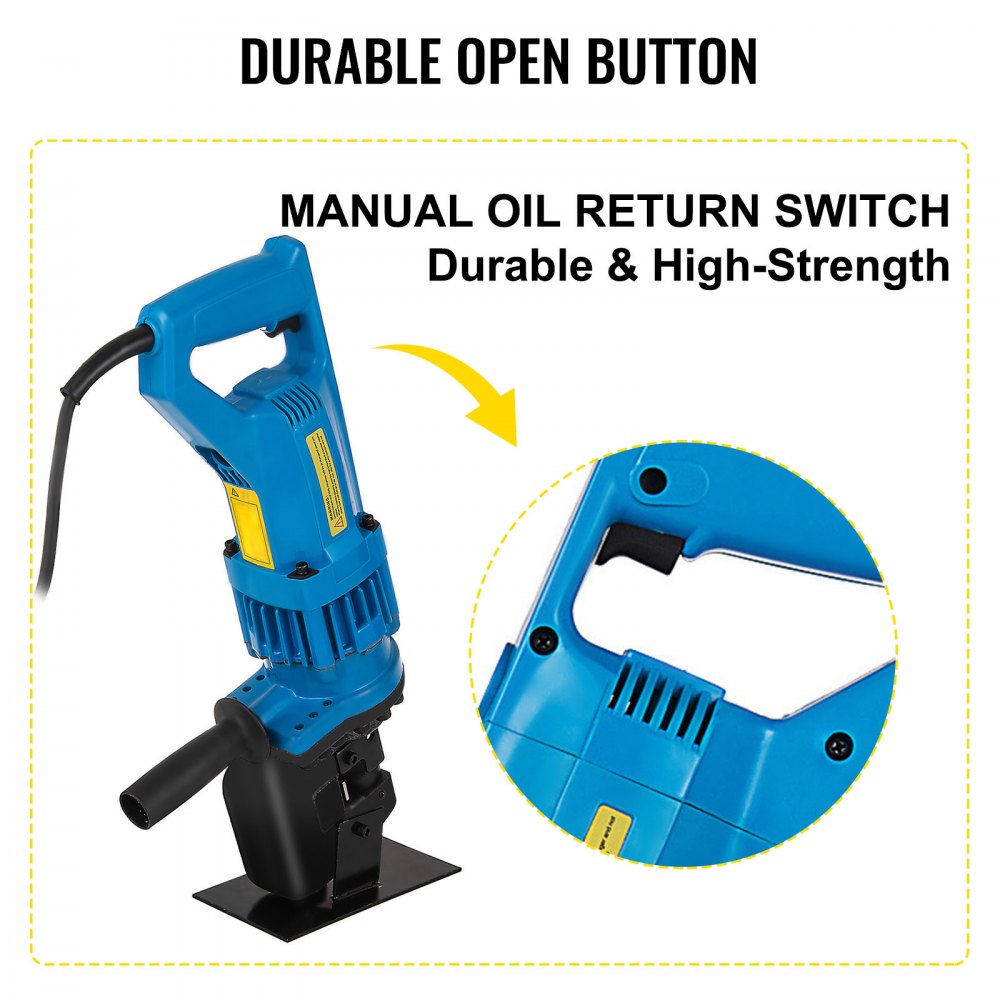

Durable Open Button
The open button of our product is durable and can be opened many times in succession. It also can return oil anytime.

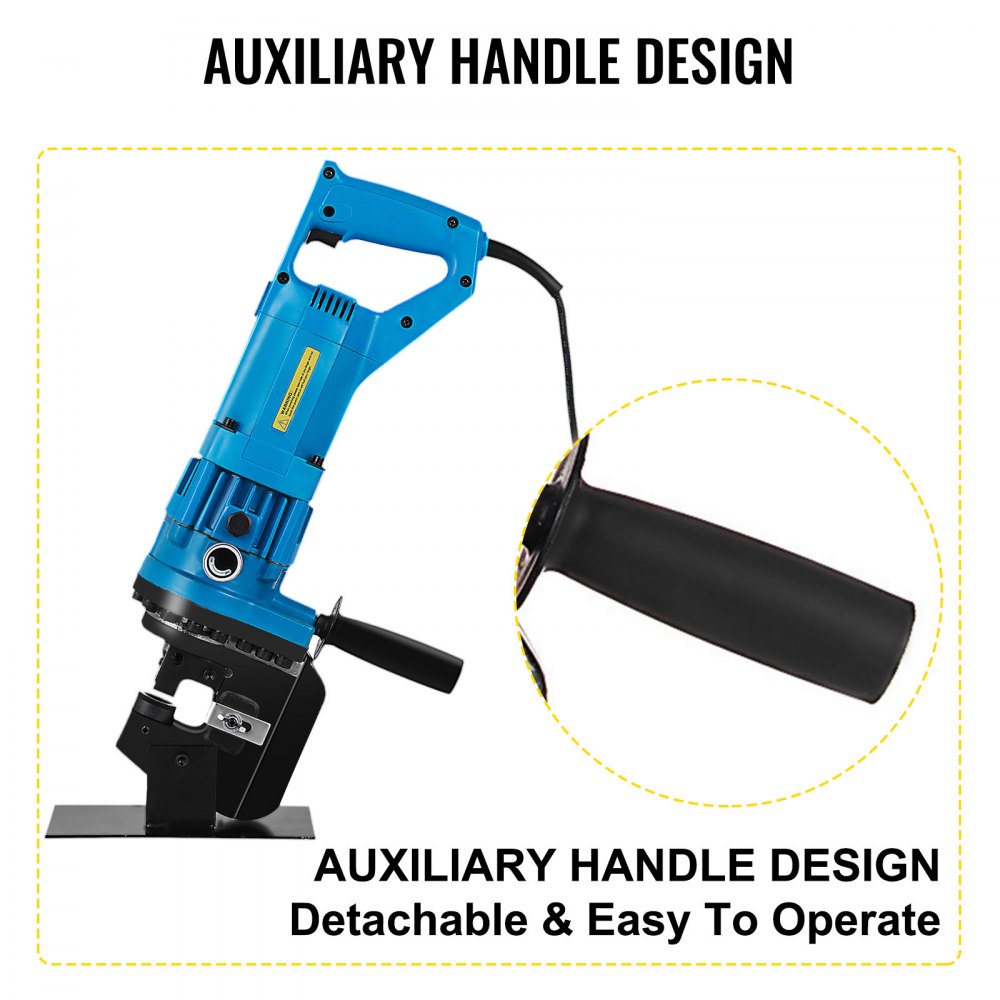

Auxiliary Handle Design
The auxiliary handle of our product is detachable, and you can operate it from different angles, which is convenient and easy to use.

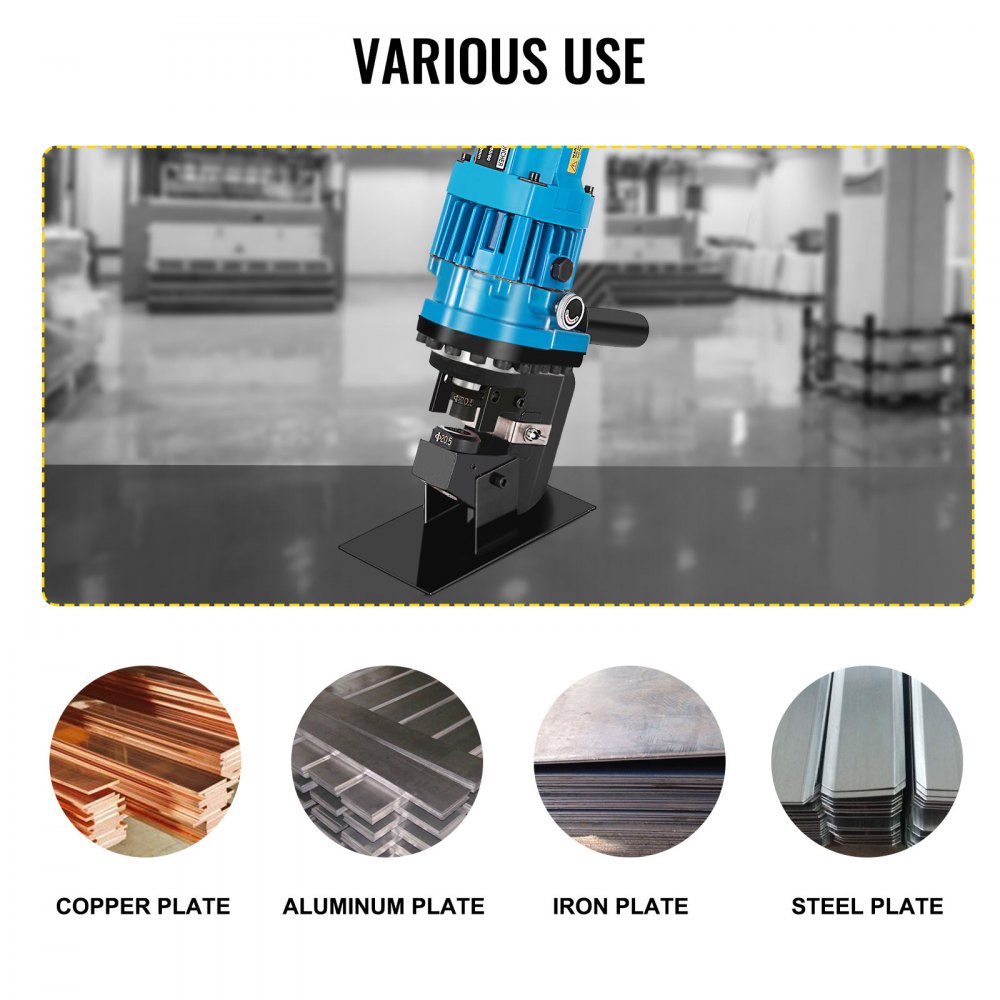

Various Uses
The handy hydraulic puncher is suitable for punching on steel plate, angle steel plate, iron plate, aluminum plate, and U-steel.
Specifications
-
Model: MPH-20 -
Rated Voltage: 110V±15%, 50/60Hz -
Motor Power: 900W -
Maximum Output: 10 T/ 22046 lbs -
Cutting Thick: 1/4 in -
Throat Depth: 40 mm/1.57 in -
Punching Speed: 2-3s -
Copper/Aluminum Plate: Thickness ≤ 8 mm/0.3 in -
Iron / Steel Plate: Thickness ≤ 6 mm/0.2 in -
Dies Size: 1/4", 3/8", 1/2", 5/8", 3/4"(6.5, 9, 13, 17, 20.5 mm)
Package Content
-
1 x Stand -
1 x Oil Bottle -
1 x Machine -
1 x Parts Kit For Replacing -
1 x Tool Wrench -
1 x Handle -
2 x Hexagon Allen Wrench & Screws -
5 x Dies
